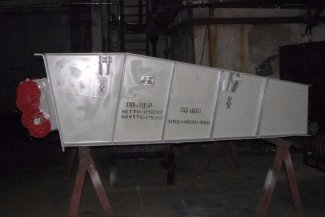

Description
t is specified for discharging of cobbed (up to 500 mm) bulk materials with the angle of natural slope not less than 44º, not susceptible for adhesion from bunkers and other accumulating reservoirs within the temperature range from -20 Cº to +5 Cº.
Specifications
| Наименование показателя | Показатель |
|---|---|
| Tray width, mm | 1200 |
| Tray lenght, mm | 2700 |
| Slope angle of chute bottom, degree | 8 |
| *Capacity, t/h | 80-300 |

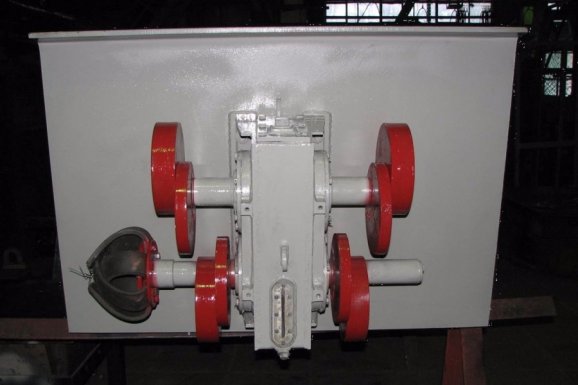

| Drive | Vibration generator ВД2-8/1000, engine 4А160S6У3 |
| Force of vibration generator, N | 14000-80000 |
| ** Weight of vibrating parts, kg | 1730 |
| Vibration parameters: | |
| ** amplitude, mm | 4,6 |
| ** angle, degree | 30 |
| Frequency of fluctuations, Hz | 52,3-104,7 |
| Electric drive of vibration generator: | |
| - power, kWt | 11 |
| - frequency of rotation, rpm | 1000 |
| - voltage, V | 380 |
| Static load on funnel flange, kN | 65,6 |
| *** Dynamic load on funnel flange, kN | 5,4 |
| Dimensions of the feeder, mm | |
| - length | 3340 |
| - length | 2110 |
| - heigth | 2010 |
* Capacity stated for cobbed material with volumetric mass 1,6 t/m³
** Stated for empty feeder
*** Load 10 times multiplied for short time (10 sec) while starting and stopping
