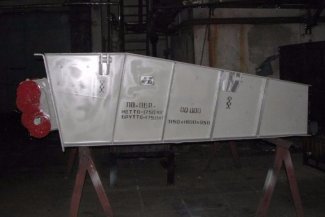

PV-PBR-1,4/2,7

vibrational bunker feeder
Application for ordering equipment

Description

t is specified for discharging of cobbed (up to 500 mm) bulk materials with the angle of natural slope not less than 44º, not susceptible for adhesion from bunkers and other accumulating reservoirs within the temperature range from -20 Cº to +5 Cº.

Specifications

Tray width, mm 1200±10
Tray lenght, mm 2700±10
Oscillation amplitude of the tray, mm 2,1-4,3
Oscillation frequency of the box, s-1 12,2...16,5
Vibration angle, grad. 20
Inclination angle of the bottom, grad. 10
Feeding lumps size, mm, not more 500
Outpoot, t/h 60...600
Drive engine power, kW 11

Overall dimensions, mm

lenght

width

height



3180±50

2036±20

950±10

Frequency converter

EI-7011-015H, 380B, 25A, N=11 кВт

lenght

width

height

weight





228

300

215

6,6

Weight of oscillation part of the feeder, kg 1860
