Description

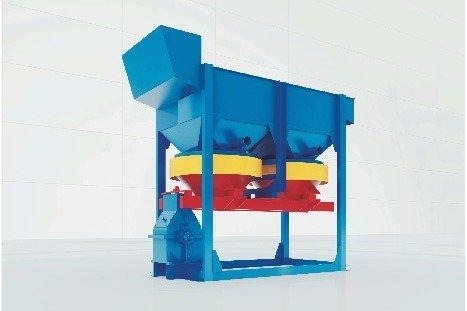

he diaphragm jig with a fixed-type screen (MOD) is designed for gravity concentration of alluvial and rock chip milled ores of nonferrous metals, diamonds, and other mineraldeposits in water.
This equipment is used at mining and refining factories, and movable refining complexes.
Specifications
| Parameters | Values |
|---|---|
| Qty of chambers, pcs. | 2 |
| Raw product throughput, tons/h | 10 |
| Feed size, mm, not more than | 15 |
| Screen working area, m | 1 |
| Cones stroke rate, min, limits | 130-350 |
| Feed size, mm, not more | 30 |
| Rated power, kW | 1.1 |
|
Overall dimensions, mm, no more |
2160 956 2040 |
| Weight, kg | 905 |
